358 Prison Fence

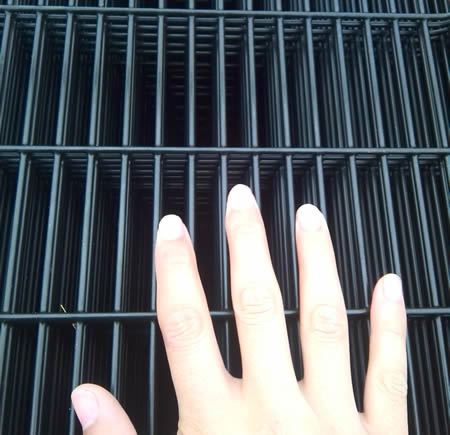

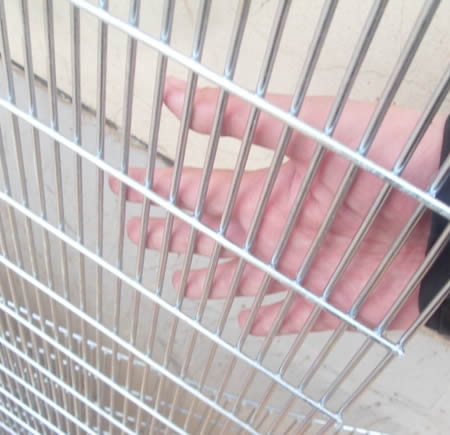

With many years extensive knowledge and experience, Qualified 358 security fence is applicated widely in prison,ministry of defence, Industrial sites, ball court and etc. ’358′ comes from the measurements, 3″ × 0.5″ × 8 gauge, samll apertures 76.2mm × 12.7mm is not possible for any intruder to get a foot hold for climbing, or indeed for getting any cutting tool into. High standard finish (42 micron hot dipped galvanized or powder coated to BS EN 13438) can ensure that 358 fence is durably used in various of environment.

Wire diameter: Horizontal wire: 4.0mm; Vertical wire: 4.0mm.

Mesh apertures: 76.2mm × 12.7mm.

Panel height: from 1.27meter to 5.2meter.

Panel width: 25 × 15mm.

Post size: 60 × 60 × 2.5mm, 80 × 80 × 2.5mm, 100 × 100 × 3/4mm, 120 × 120 × 5mm.

Post height: from 1500mm to 6200mm.

Finish:

  • Hot dipped galvanized 300g/sm or 42micron.
  • Powder coated to BS EN 13438.

Specification:

Panels Posts
Fence Panel Size Section  O/A Length  Total number of fixings
height m Height/Width mm Inters- 1 Clamp bar Corners- 2 Clamp bars
1.27 1270 × 2515 60x60x2.5mm 1500 4 8
1.80 1800 × 2515 60x60x2.5mm 2300 6 12
2.0 2007 × 2515 60x60x2.5mm 2700 7 14
2.4 2400 × 2515 60x60x2.5mm 3100 9 18
3.0 2997 × 2515 80x80x2.5mm 3800 11 22
3.3 3302 × 2515 80x80x2.5mm 4200 12 24
3.6 3607 × 2515 100x100x3mm 4500 15 26
4.2 4204 × 2515 100x100x4mm 5200 15 30
4.5 4496 × 2515 100x100x5mm 5500 16 32
5.2 5207 × 2515 120x120x5mm 6200 18 36

Installation:

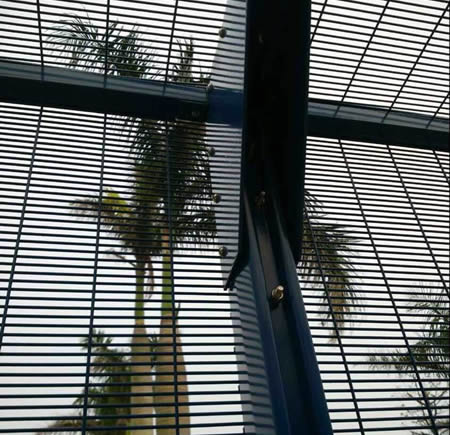

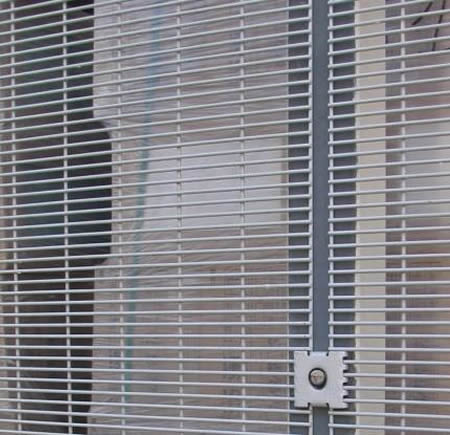

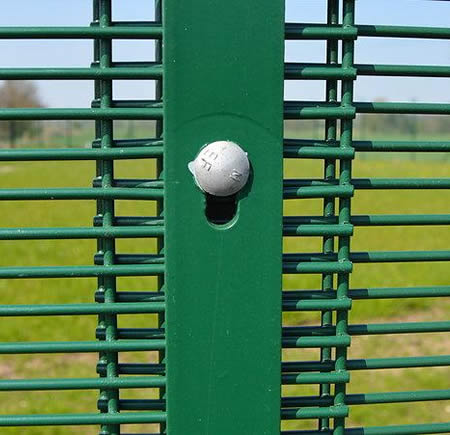

Clamp and M8 bolt.

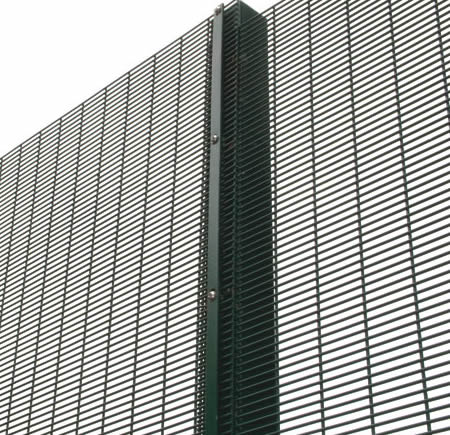

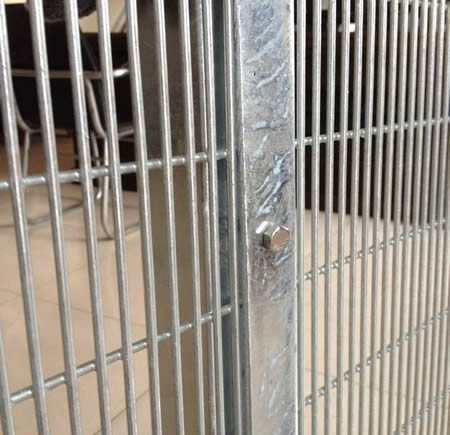

Use clamp and M8 square bolts with nuts through posts.

Top barbed wire: Qualified 358 fence can supply top razor wire or barbed wire for further security.

Gate: Qualified can design and make gates that suit to 358 mesh fence with anti-climb protection.

358 Prison Fence Processing:

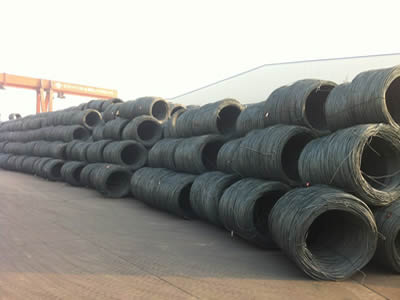

1. Low carbon Steel Q235 Material

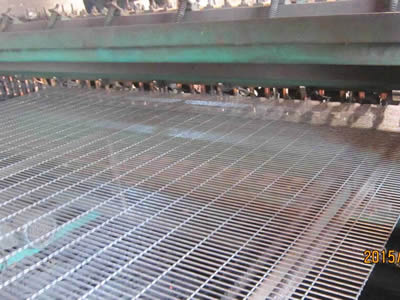

2. Panel Welded proceeding

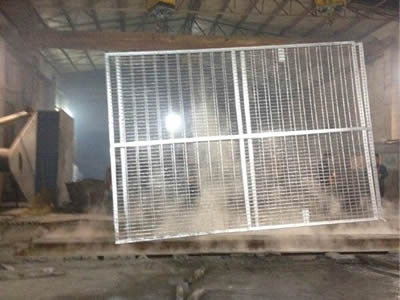

3. Hot dipped galvanized proceeding

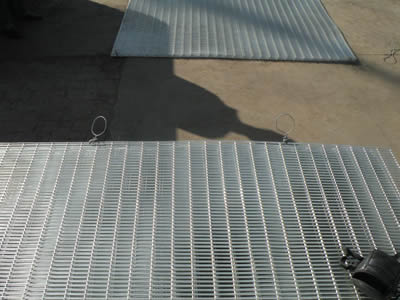

4. Packing

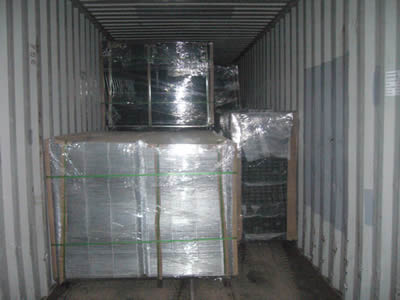

5. Loaded container

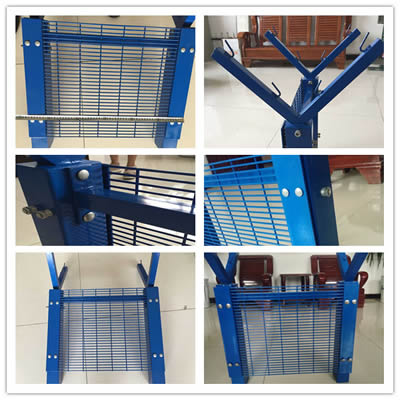

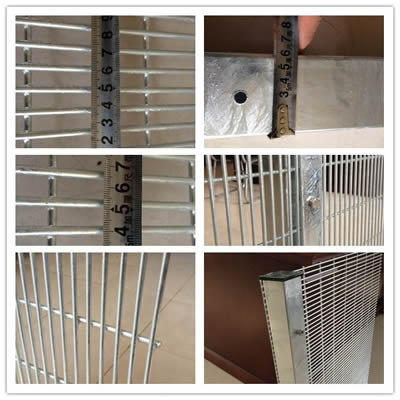

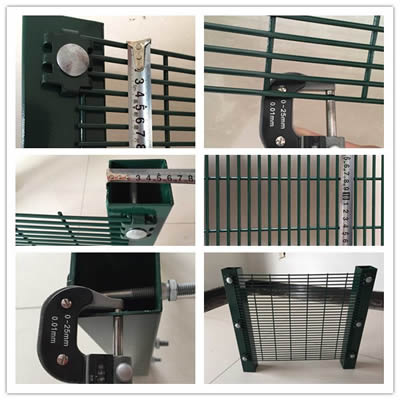

Test

Hot dipped Galvanized 358 mesh fence
Dark Green 358 Mesh Fence

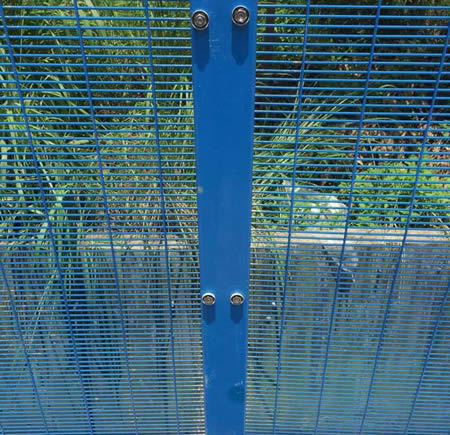

Blue 358 mesh fence

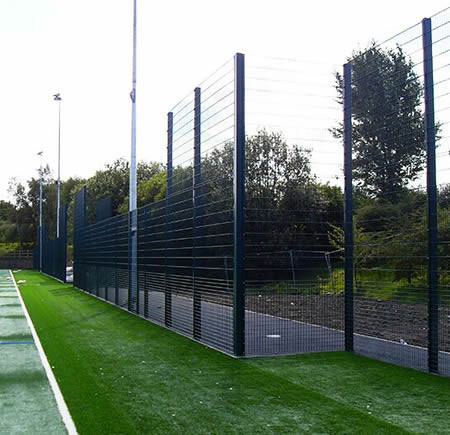

Gallery of 358 Prison Fence Application:

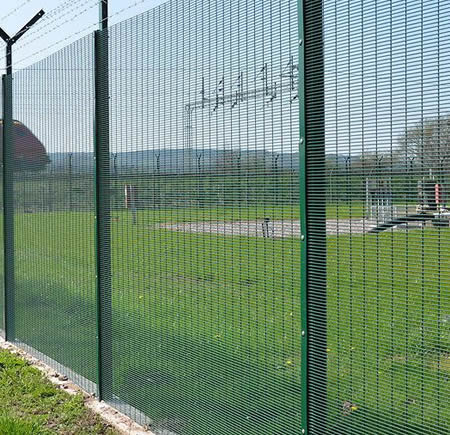

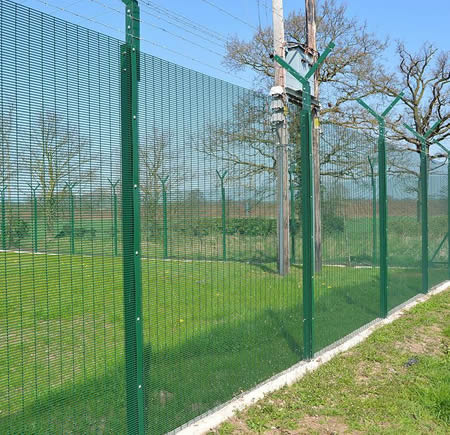

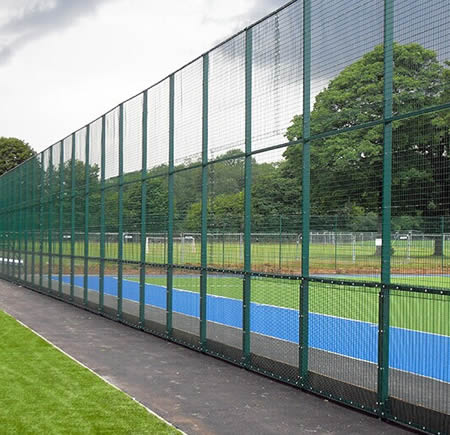

358 Prison Fence Gallery
